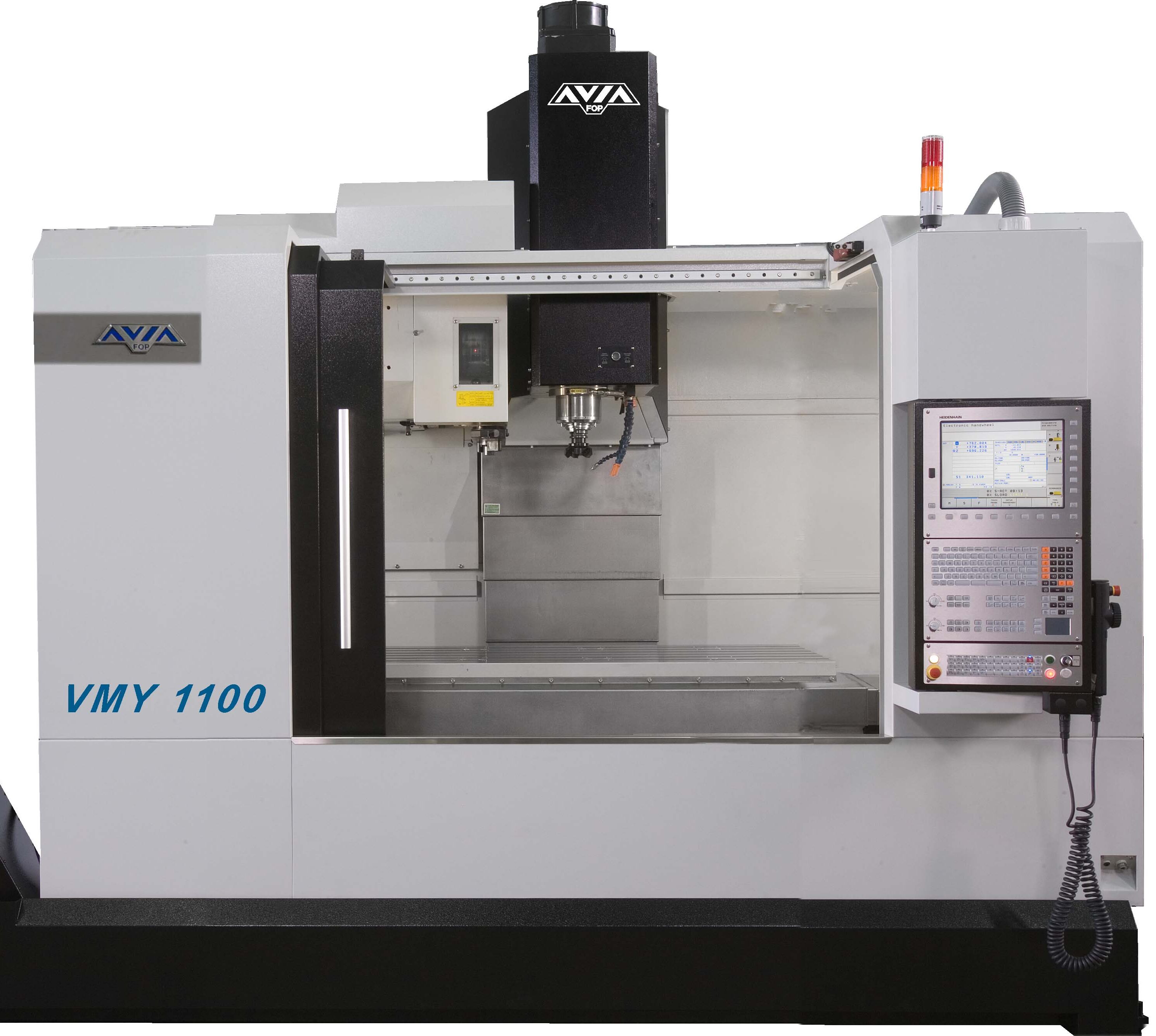

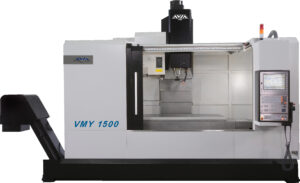

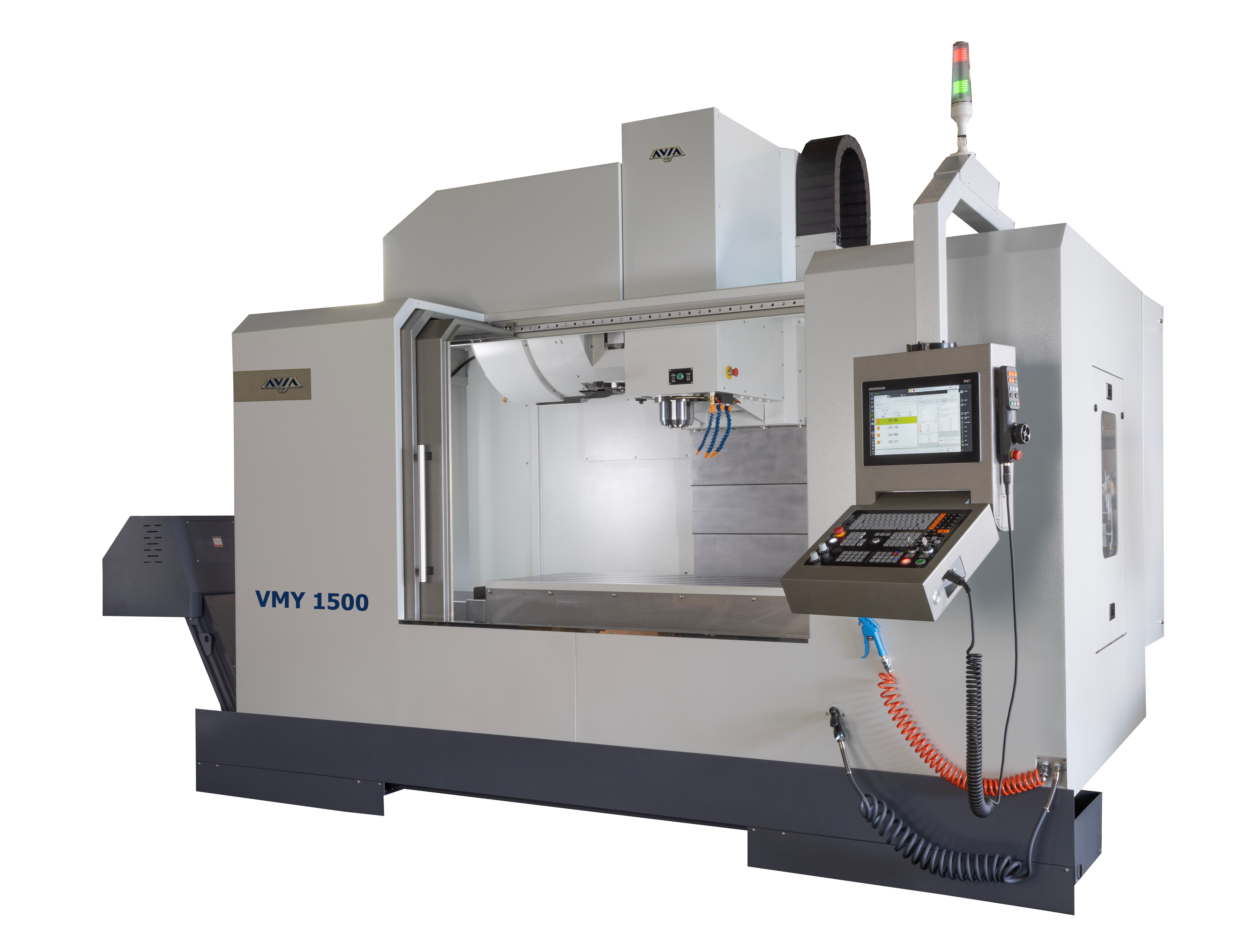

We proudly present the VMY Series Vertical Machining Centre, designed with a large working area and an extended Y-axis travel of 750 mm. This high-speed machining solution is dedicated to tooling production, including moulds, dies, and stamping tools, and is ideal for applications that require high spindle speeds and fast feed rates.
CONCEPT
• Newly developed machining centre – a modern solution for high-speed machining of a wide range of materials, including hardened steel and softer materials like aluminium.
• Rigid C-frame bed structure with cross table ensures enhanced stability compared to cantilever designs.
• Roller linear guideways on all linear axes enable extremely high feed rates – up to 48 m/min.
• Signature AVIA machine characteristics: excellent rigidity, high precision, and minimal maintenance requirements.
• Versatile for both single-unit tool manufacturing and series production of medium and larger parts (worktable up to 1750 x 700 mm).
• Spacious and easily accessible working area combined with a compact footprint offers outstanding machining capabilities while saving valuable shop floor space.
CNC Control
Equipped with the latest Heidenhain TNC 7 series control featuring a 16” touchscreen. Digital servo drives and motors for axis and spindle feed operate in conjunction with next-generation UVR drive systems. Ultra-short single block processing time of 1.5 ms. Convenient Klartext conversational programming and a wide range of built-in standard cycles for efficient and intuitive operation.
| TECHNICAL DATA | VMY 1100 | VMY 1300 | VMY 1500 | |
| TABLE: | ||||
| Table surface | mm | 1350 x 700 | 1550 x 700 | 1750 x 700 |
| T-slots: number / width / spacing | mm | 6 / 18 / 100 | 6 / 18 / 100 | 6 / 18 / 100 |
| Max. table load | kg | 1,000 | 1,500 | 1,500 |
| TRAVELS: | ||||
| Longitudinal (X) | mm | 1,100 | 1,300 | 1,500 |
| Cross (Y) | mm | 750 | 750 | 750 |
| Vertical (Z) | mm | 800 | 800 | 800 |
| SPINDLE: | ||||
| Max. spindle speed | rpm | 15,000 | 15,000 | 15,000 |
| Spindle taper | ISO | ISO 40 | ISO 40 | ISO 40 |
| Tool holder type | type | 69871A | 69871A | 69871A |
| Spindle power (standard) S1 / S6 (25%) / Smax | kW | 12 / 22.8 / 53.4 | 12 / 22.8 / 53.4 | 12 / 22.8 / 53.4 |
| Spindle torque (standard) S1 / S6 (25%) / Smax | Nm | 59 / 112 / 170 | 59 / 112 / 170 | 59 / 112 / 170 |
| Spindle power (option) S1 / S6 (40%) / Smax | kW | 20 / 33.8 / 60.2 | 20 / 33.8 / 60.2 | 20 / 33.8 / 60.2 |
| Spindle torque (option) S1 / S6 (40%) / Smax | Nm | 120 / 185 / 250 | 120 / 185 / 250 | 120 / 185 / 250 |
| Min./Max. distance spindle nose to table surface | mm | 130 / 930 | 130 / 930 | 130 / 930 |
| Coolant system | standard | standard | standard | |
| TOOL CHANGER: | ||||
| Tool changer type std / option | cam / chain | cam / chain | cam / chain | |
| Number of tools std / option | pcs | 30 / 60 | 30 / 60 | 30 / 60 |
| Tool-to-tool change time | s | 3,5 | 3,5 | 3,5 |
| Max. tool diameter std / option | mm | 85 / 76 | 85 / 76 | 85 / 76 |
| Max. tool weight | kg | 7 | 7 | 7 |
| Max. tool length | mm | 300 | 300 | 300 |
| FEEDS: | ||||
| feed rate X / Y / Z | m/min | 0–35 / 35 / 35 | 0–35 / 35 / 35 | 0–35 / 35 / 35 |
| Rapid traverse X / Y / Z | m/min | 48 / 48 / 48 | 48 / 48 / 48 | 48 / 48 / 48 |
| CNC SYSTEM: | ||||
| Standard | Heidenhain | TNC 7 16″ | TNC 7 16″ | TNC 7 16″ |
| Option | Heidenhain | TNC 640 19″ | TNC 640 19″ | TNC 640 19″ |
| GENERAL DATA: | ||||
| Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| Repeatability | mm | 0.005 | 0.005 | 0.005 |
| Total power installed | kVA | 35 | 35 | 35 |
| Overall dimensions X / Y / Z | mm | 3710 x 2650 x 3310 | 4600 x 2650 x 3310 | 4600 x 2650 x 3310 |
| Weight: gross | kg | approx. 9,400 | approx. 9,600 | approx. 9,800 |
The manufacturer reserves the right to modify the technical specifications, equipment, and configuration of the offered products at any time and without prior notice.
All information, data, and illustrations presented are for general informational purposes only and shall not be construed as a binding commercial offer within the meaning of applicable civil law.
